  • Blackmagic Design URSA Mini Pro B4 Mount

Blackmagic Design URSA Mini Pro B4 Mount

Blackmagic Design URSA Mini Pro B4 Mount

SKU:

CINEURSAMUPROTB4HD

Availability:

Enquire for ETA

star star star star star (No reviews yet) Write a Review

Write a Review

Blackmagic Design URSA Mini Pro B4 Mount
Blackmagic Design
Blackmagic Design URSA Mini Pro B4 Mount

MSRP:
Sale Price
Now: $760.00
Inc. GST
MSRP:
Now: $660.87
Ex. GST
(You save )

Adding to cart… The item has been added

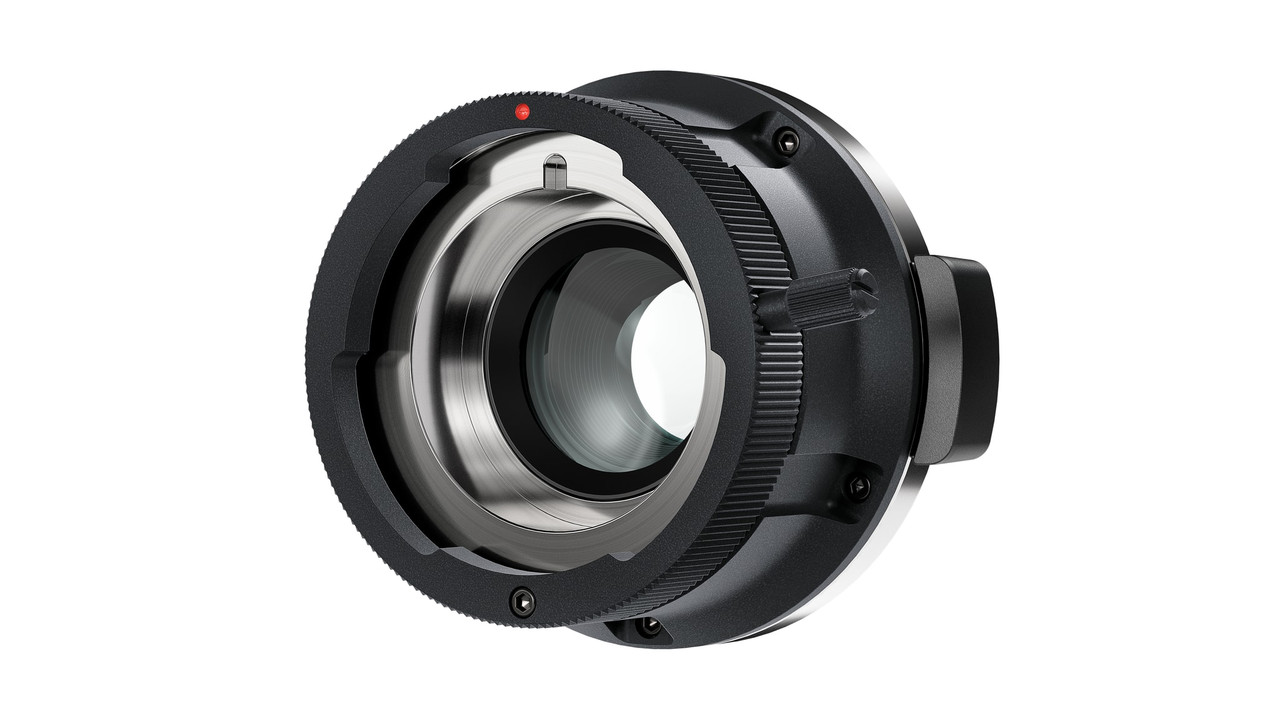

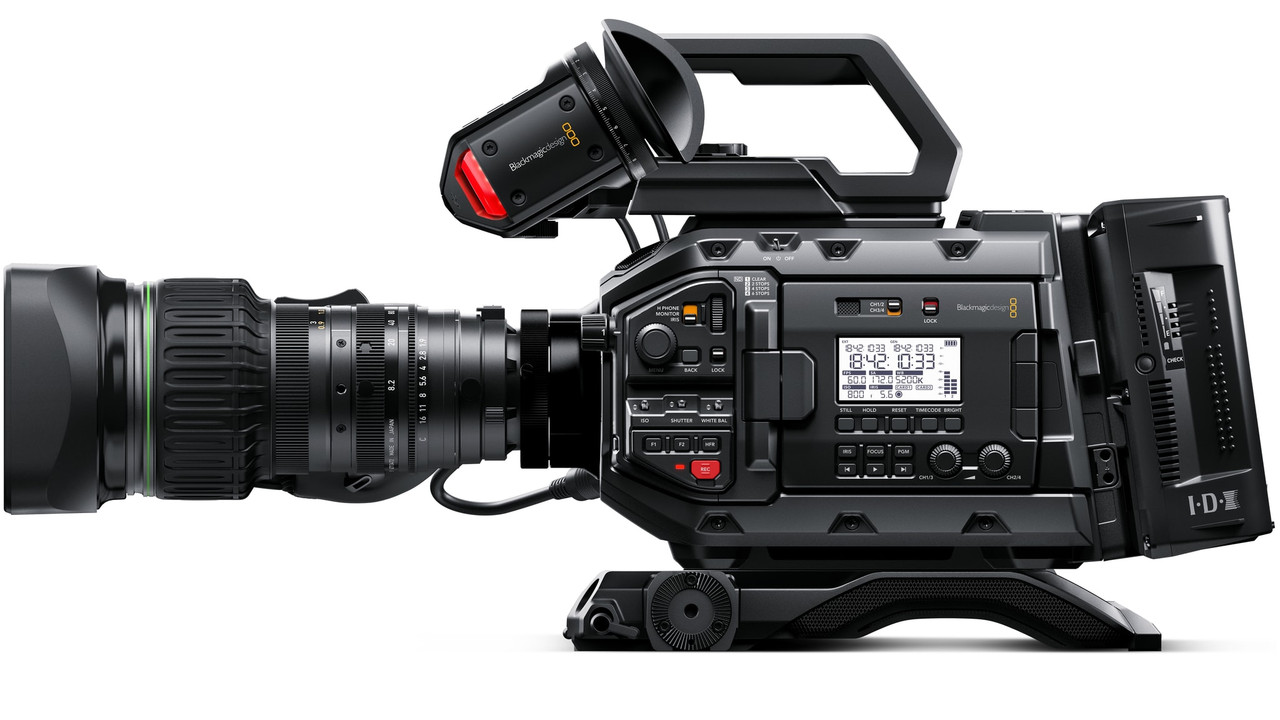

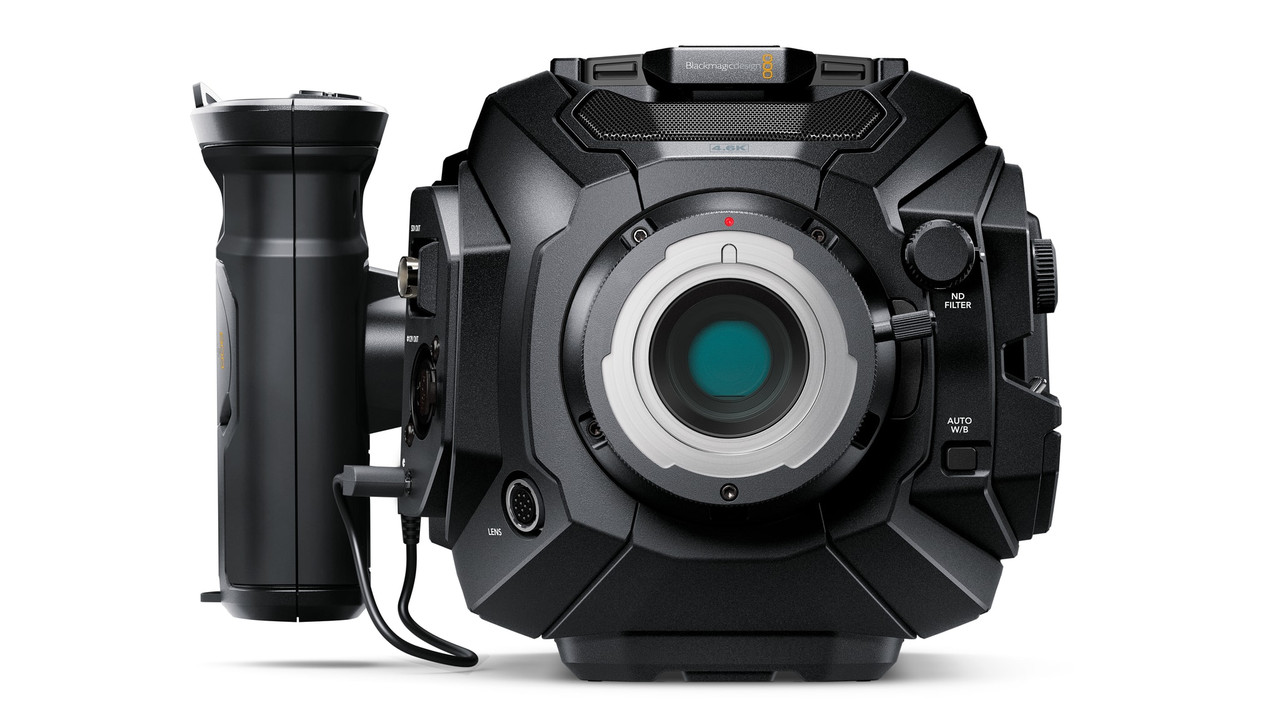

Blackmagic Design URSA Mini Pro B4 Mount. The URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro. This mount enables using your ENG-style B4 mounted HD lens on your URSA Mini Pro.

The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism, on the URSA Mini Pro, which is a single-sensor camera, without the image suffering from optical degradation. The lens mount accepts lenses with a B4 lens mount and features a locking lever to engage the mount's lock. The included shim kit enables precise flange distance adjustment when installing this mount on your camera.The integrated optics support HD resolution and are designed with spherical-aberration correction that compensate for the lens being used on a single-sensor camera while designed for a three-sensor/prism-block camera..

  • For HD Lenses with B4 Mount
  • Integrated Optical Elements
  • Spherical-Aberration Correction
  • Includes Shim Set
  • Description
  • Specifications
  • 0 Reviews

Blackmagic Design URSA Mini Pro B4 Mount. The URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro. This mount enables using your ENG-style B4 mounted HD lens on your URSA Mini Pro.

The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism, on the URSA Mini Pro, which is a single-sensor camera, without the image suffering from optical degradation. The lens mount accepts lenses with a B4 lens mount and features a locking lever to engage the mount's lock. The included shim kit enables precise flange distance adjustment when installing this mount on your camera.The integrated optics support HD resolution and are designed with spherical-aberration correction that compensate for the lens being used on a single-sensor camera while designed for a three-sensor/prism-block camera..

  • For HD Lenses with B4 Mount
  • Integrated Optical Elements
  • Spherical-Aberration Correction
  • Includes Shim Set

Blackmagic Design URSA Mini Pro B4 Mount

The URSA Mini Pro B4 Mount from Blackmagic Design is a replacement mount for use on the URSA Mini Pro. This mount enables using your ENG-style B4 mounted HD lens on your URSA Mini Pro. The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism, on the URSA Mini Pro, which is a single-sensor camera, without the image suffering from optical degradation.

The lens mount accepts lenses with a B4 lens mount and features a locking lever to engage the mount's lock. The included shim kit enables precise flange distance adjustment when installing this mount on your camera.

  • The integrated optics support HD resolution and are designed with spherical-aberration correction that compensate for the lens being used on a single-sensor camera while designed for a three-sensor/prism-block camera.
Camera MountBlackmagic URSA Mini Pro
Lens MountB4 Mount
Magnification1.1x
DimensionsH: 3.3 x W: 2.9 x D: 2.2" / H: 83.1 x W: 74.2 x D: 56.0 mm
Weight12 oz / 340 g
Package Weight0.66Kg
Box Dimensions (LxWxH)12.95cm x 12.83cm x 10.16cm

In The Box

  • 1 x Blackmagic Design URSA Mini Pro B4 Mount
  • 1 x Turret Dust Cap
  • 1 x Lens Rear Protective Cover
  • 1 x Molded Mount Case
  • 1 x Set Spare Mounting Screws
  • 1 x Blackmagic Design URSA Mini Pro Shim Kit
  • 1 x Limited 1-Year Warranty
