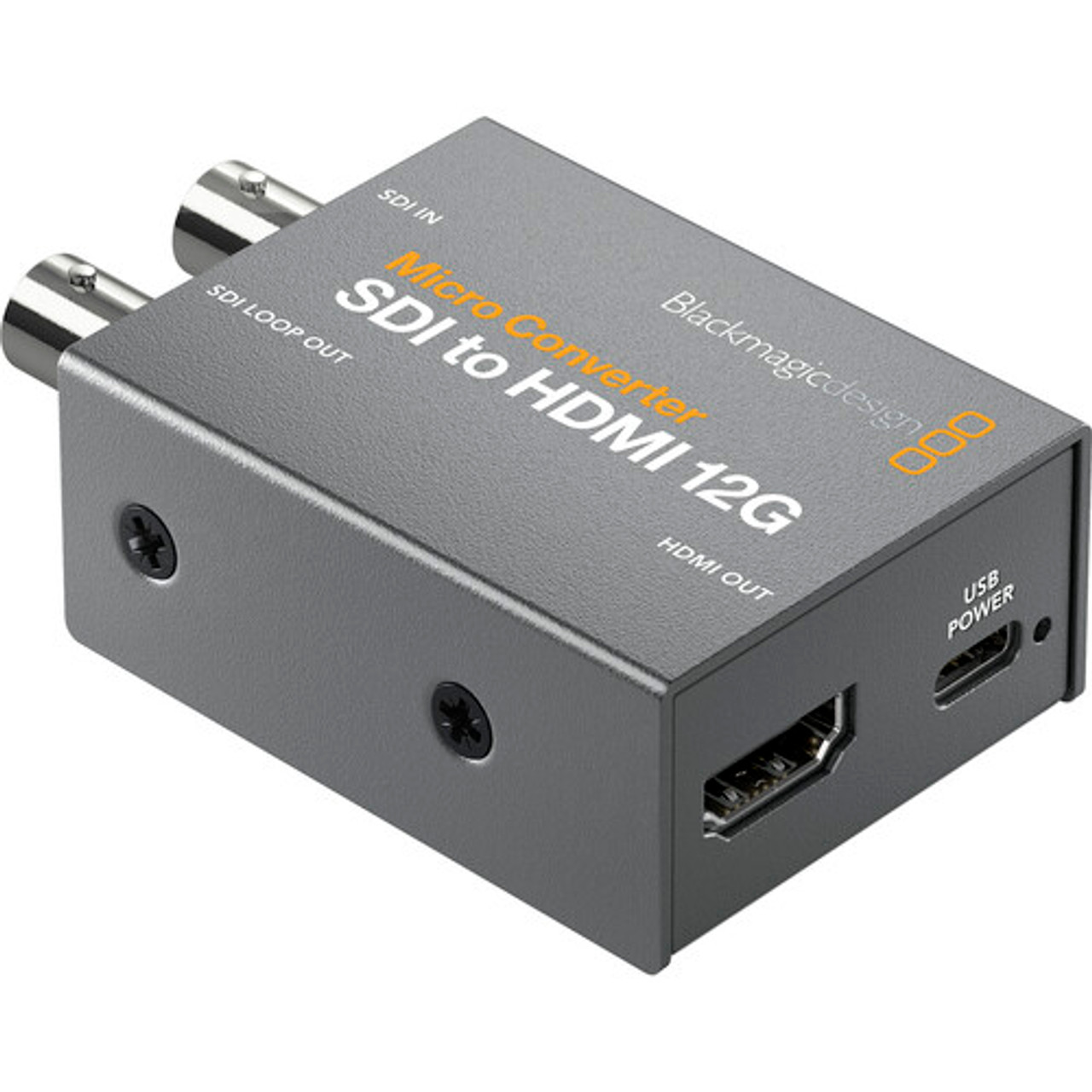

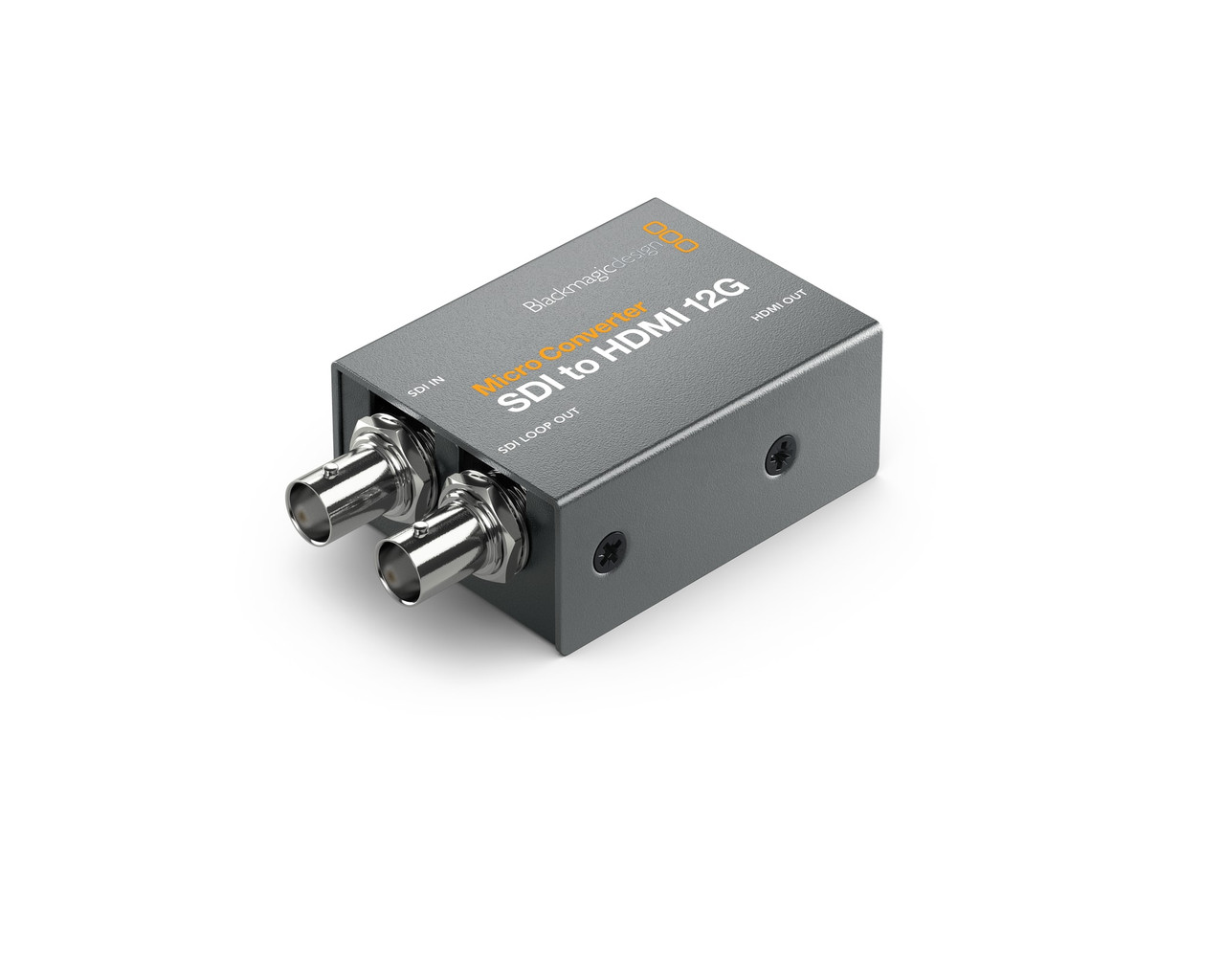

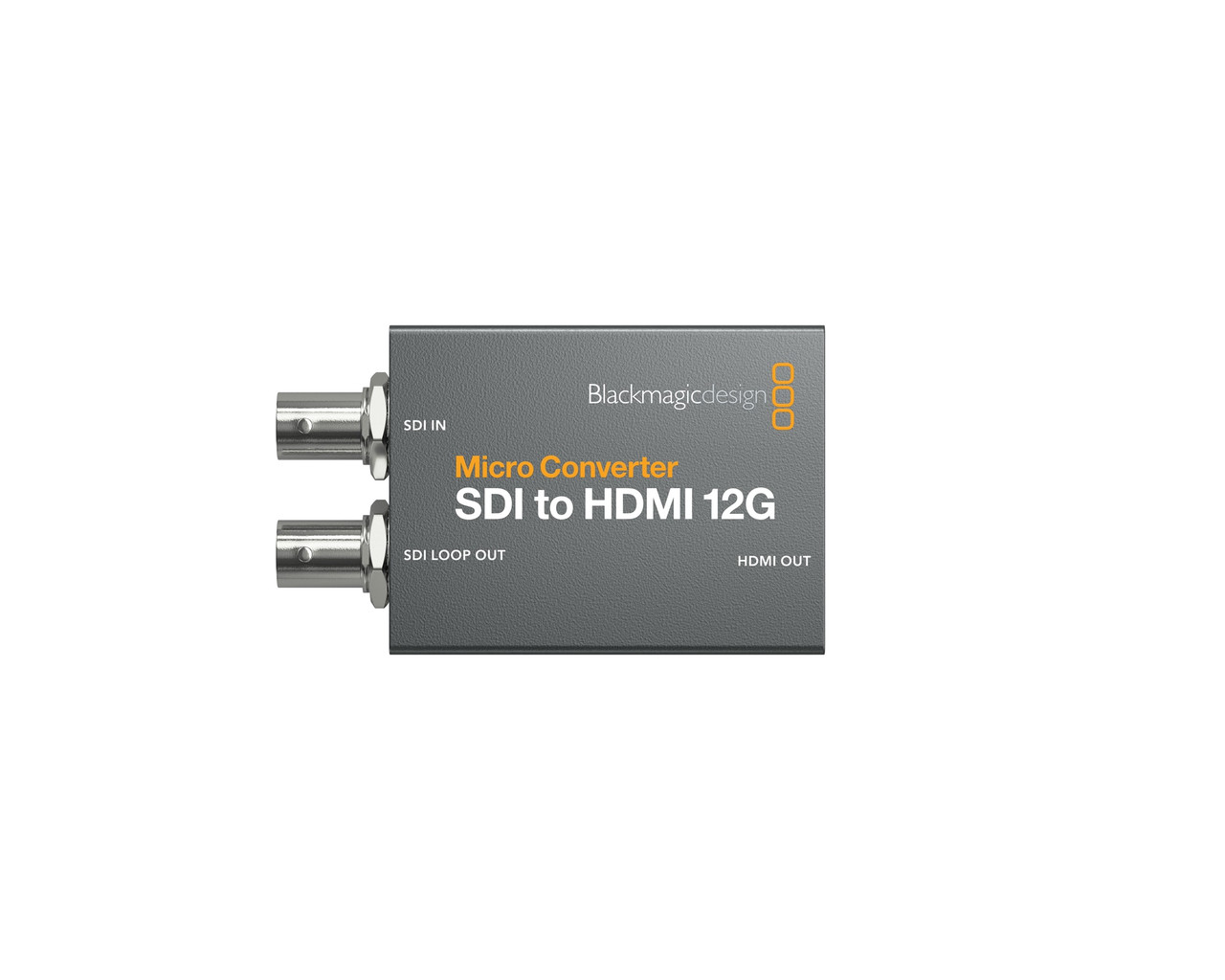

Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
SKU:
CONVCMIC/SH12G/WPSU
Availability:
In Stock
Write a Review
Blackmagic Design
Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply. Super compact and rugged, the Micro Converter SDI to HDMI 12G from Blackmagic Design enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 33-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output.
It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60. The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.
- 1 x 12G-SDI Input, 1 x HDMI Output
- 1 x 12G-SDI Loop Output
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- A Power Supply Is Included
- LED Video & Power Signal Indicators
Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
Super compact and rugged, the Micro Converter SDI to HDMI 12G from Blackmagic Design enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 33-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A power supply and an international plug adapter set is included with the converter.
- One 12G-SDI input
- One HDMI output
- One 12G-SDI loop output
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
- Built-in re-clocking on HDMI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
- Supports embedded SDI input and embedded HDMI output
- LED indicators for video and power signals
- Power from a monitor, laptop, or other component using the USB Type-C port
- Power supply and international plug set is included
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bit
| Video Inputs | 1 x BNC (12G-SDI / 3G-SDI) Female |
| Audio Inputs | None |
| Video Outputs | 1 x HDMI (HDMI 2.0) Female 1 x BNC (12G-SDI / 3G-SDI) Female (Loop Output) |
| Audio Outputs | None |
| Other I/O | 1 x USB-C Control, Firmware Input |
| Expansion Slots | None |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Output Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Embedded Audio | SDI/HDMI |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084 |
| HDCP Support | Version 2.2 |
| HDR Compatibility | Not Specified by Manufacturer |
| Wi-Fi | None |
| OS Compatibility | macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
| Power Consumption | Device: 4 W |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |
| Package Weight | 0.36Kg |
| Box Dimensions (LxWxH) | 14.73cm x 10.67cm x 7.37cm |
In The Box
- 1 x Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
- 1 x Power Supply
- 1 x International Plug Set
- 1 x Limited 3-Year Warranty
Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
Super compact and rugged, the Micro Converter SDI to HDMI 12G from Blackmagic Design enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 33-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A power supply and an international plug adapter set is included with the converter.
- One 12G-SDI input
- One HDMI output
- One 12G-SDI loop output
- Robust metal housing and rugged connectors
- USB Type-C port for powering via a compatible component like a monitor or laptop
- Updatable via the USB Type-C port and your Mac or Windows computer
- Built-in re-clocking on HDMI output enables stable output over longer cable runs
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
- SDI support from NTSC and PAL up to DCI/UHD 4K60
- HDMI support from NTSC and PAL up to DCI/UHD 4K60
- Supports embedded SDI input and embedded HDMI output
- LED indicators for video and power signals
- Power from a monitor, laptop, or other component using the USB Type-C port
- Power supply and international plug set is included
- macOS 10.15 Catalina
- macOS 11.1 Big Sur or later
- Windows 10, 64-bit
| Video Inputs | 1 x BNC (12G-SDI / 3G-SDI) Female |
| Audio Inputs | None |
| Video Outputs | 1 x HDMI (HDMI 2.0) Female 1 x BNC (12G-SDI / 3G-SDI) Female (Loop Output) |
| Audio Outputs | None |
| Other I/O | 1 x USB-C Control, Firmware Input |
| Expansion Slots | None |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Output Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Embedded Audio | SDI/HDMI |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084 |
| HDCP Support | Version 2.2 |
| HDR Compatibility | Not Specified by Manufacturer |
| Wi-Fi | None |
| OS Compatibility | macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Power I/O | 1 x USB-C (4.4 to 5.2 VDC) Input |
| Power Consumption | Device: 4 W |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |
| Package Weight | 0.36Kg |
| Box Dimensions (LxWxH) | 14.73cm x 10.67cm x 7.37cm |
In The Box
- 1 x Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
- 1 x Power Supply
- 1 x International Plug Set
- 1 x Limited 3-Year Warranty
