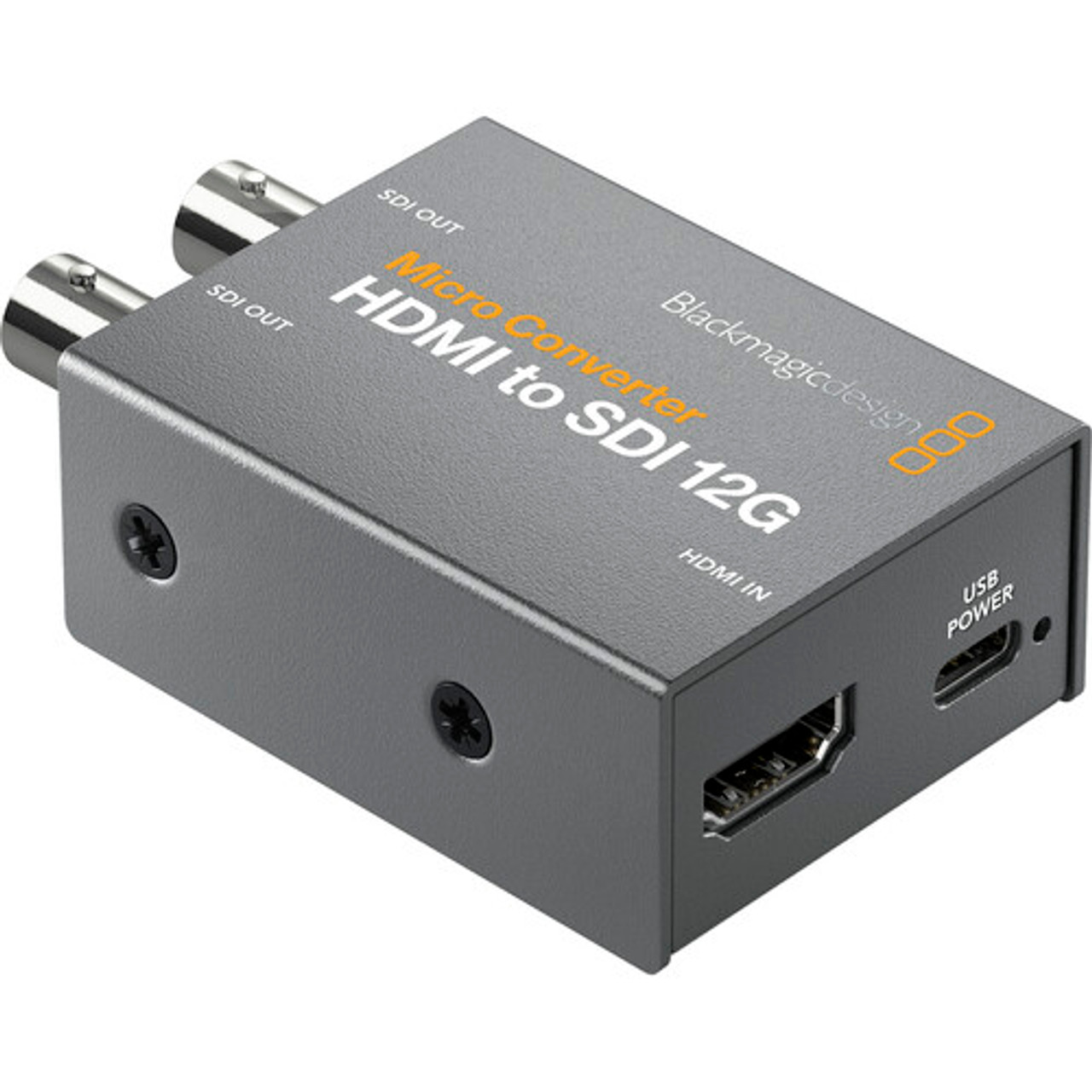

Blackmagic Design Micro Converter HDMI to SDI

Description
Specifications
0 Reviews

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply. Super compact and rugged, the Micro Converter HDMI to SDI 12G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances, using an SDI cable.

This compact converter has one HDMI input and two 12G-SDI outputs, and they can be set to Level A or B when using 3G-SDI. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

1 x HDMI Input, 2 x 12G-SDI Outputs
Selectable SD/HD Level A/B SDI Ports
Supports up to DCI 4K60 Resolution I/O
SDI Re-Clocking, HDMI Copy Protection
Automatic Input Signal Detection
Compact, Rugged Design
Embedded Audio, USB Type-C Power
Includes 5V Power Supply
LED Video & Power Signal Indicators

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply

Super compact and rugged, the Micro Converter HDMI to SDI 12G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances, using an SDI cable. This compact converter has one HDMI input and two 12G-SDI outputs, and they can be set to Level A or B when using 3G-SDI. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

The pocket-sized Micro Converter HDMI to SDI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, HDMI copy protection, and support for a wide range of pro broadcast resolutions, including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the HDMI to SDI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A 5V power supply and an international plug adapter set is included with the converter.

One HDMI input
Two 12G-SDI outputs
Selectable A and B level formats
Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or Windows computer
HD and SD timecode support
Converts HDMI timecode to SDI
Built-in re-clocking on 12G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
SDI support from NTSC and PAL up to DCI/UHD 4K60
HDMI support from NTSC and PAL up to DCI/UHD 4K60
Supports embedded HDMI input and embedded SDI output
LED indicators for video and power signals
Power from a monitor, laptop, or other component using the USB Type-C port
A 5V power supply and an international plug adapter set is included
macOS 10.15 Catalina
macOS 11.1 Big Sur or later
Windows 10, 64-bit

Video Inputs	1 x HDMI (HDMI 2.0) Female
Audio Inputs	None
Video Outputs	2 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
Audio Outputs	None
Other I/O	1 x USB-C Control, Service Input
Expansion Slots	None
Input Video Format	HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Embedded Audio	HDMI/SDI
Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
HDCP Support	Version 2.2
HDR Compatibility	Not Specified by Manufacturer
Wi-Fi	None
OS Compatibility	macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power I/O	1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption	Device: 4 W
Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90% (Non-Condensing)
Dimensions	3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight	5.29 oz / 150 g
Package Weight	0.36Kg
Box Dimensions (LxWxH)	14.73cm x 10.41cm x 7.11cm

In The Box

1 x Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply
1 x 5V Power Supply
1 x International Plug Adapter Set
1 x Limited 3-Year Warranty
