Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply. Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60.

Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.

Simultaneous SDI to HDMI & HDMI to SDI
1 x SD/HD/12G-SDI & 1x HDMI Input/Output
Supports up to DCI/UHD 4K60 Video
Blackmagic Camera Control, Tally Support
SDI Re-Clocking/HDMI Timecode
HDMI Copy Protection Support
Automatic Input Signal Detection
Embedded HDMI & SDI Input/Output
LED Video & Power Signal Indicators
A Power Supply Is Included

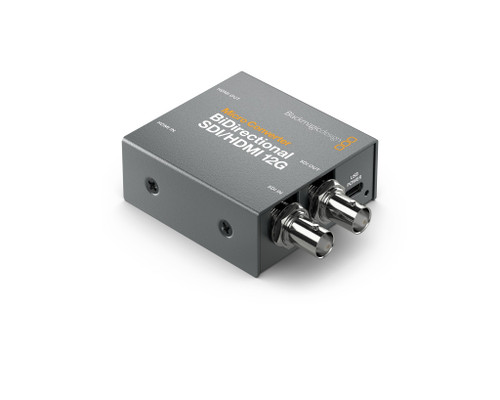

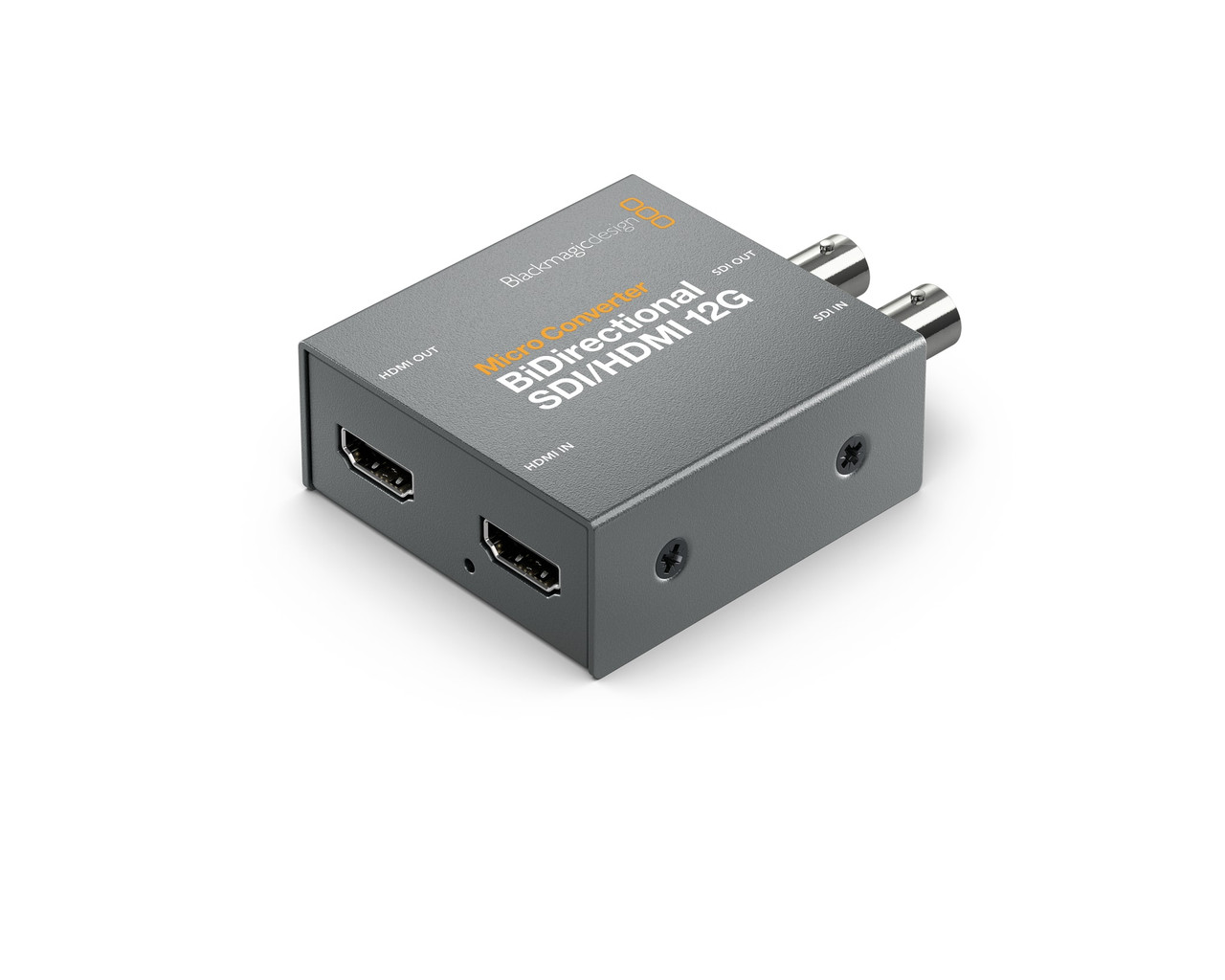

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply

Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.

The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. A power supply and an international plug adapter set are included with the converter.

You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Each conversion direction can be a different SD, HD, or UHD video standard, so it's like getting two converters in one.
Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or Windows computer
Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables use with an SDI-based live switcher
HD and SD timecode support
Converts HDMI timecode to SDI and vice versa
Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
SDI support from NTSC and PAL up to DCI/UHD 4K60
HDMI support from NTSC and PAL up to DCI/UHD 4K60
Supports embedded SDI and HDMI input and output
LED indicators for video and power signals
Power from a monitor, laptop, or other component using the USB Type-C port
Power supply and international plug adapter set are included

Video Inputs	1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female
Audio Inputs	None
Video Outputs	1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI (HDMI 2.0) Female
Audio Outputs	None
Other I/O	1 x USB-C Firmware Input (Shared Power)
Expansion Slots	None
Input Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Embedded Audio	HDMI/SDI
Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support	Version 2.2
HDR Compatibility	Not Specified by Manufacturer
Tally Light	Yes
Wi-Fi	None
OS Compatibility	macOS 10.15.15 or Later Windows 11.1 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power I/O	1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption	Device: 5 W
Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%
Dimensions	3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight	6.13 oz / 174 g
Package Weight	0.40Kg
Box Dimensions (LxWxH)	14.73cm x 11.94cm x 7.37cm

In The Box

1 x Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
1 x Power Adapter
1 x International Plug Adapter Set
1 x Limited 3-Year Warranty
