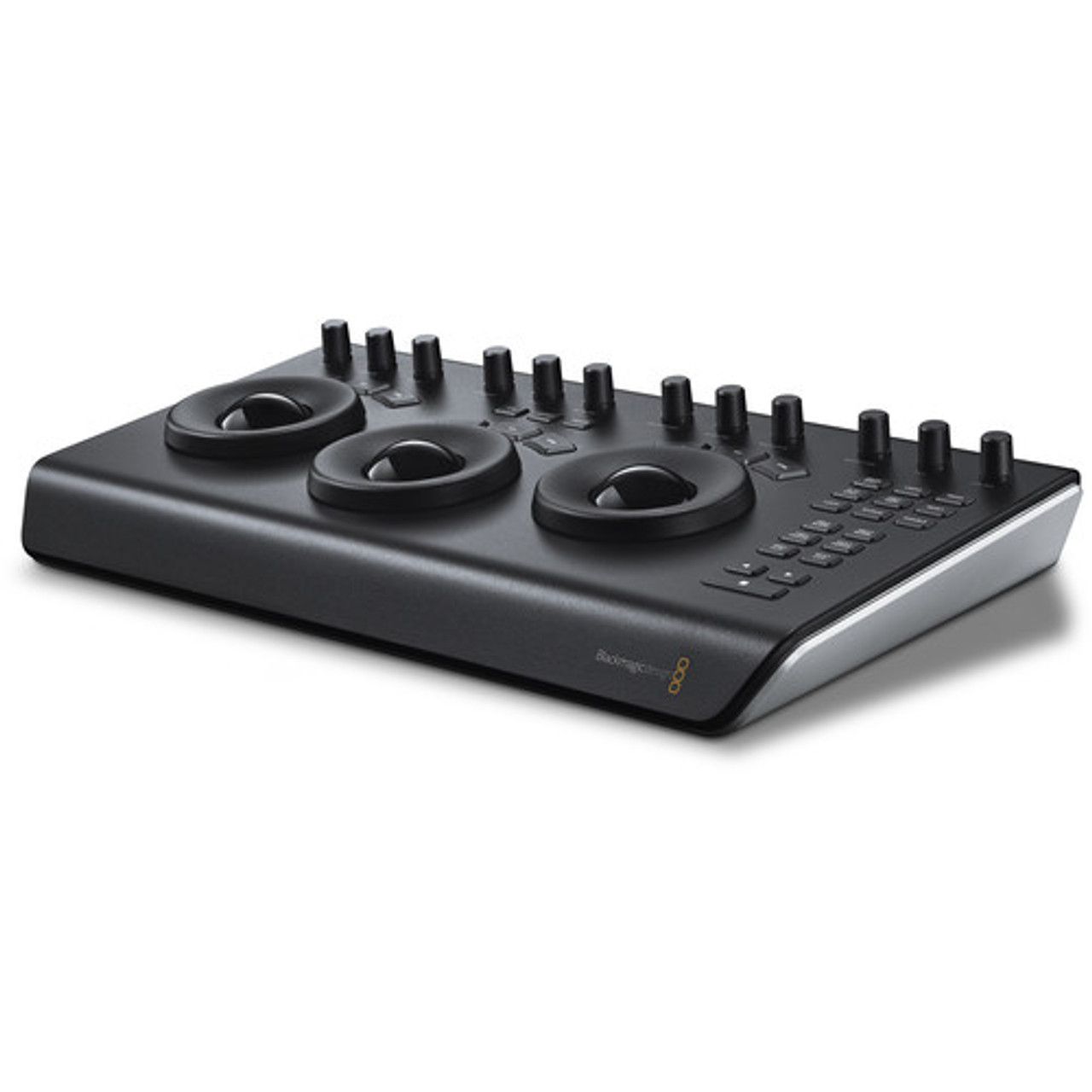

Blackmagic Design DaVinci Resolve Micro Panel with Resolve Studio Software

• Small enough to take with you, so you can use it with any Resolve system (14.3 or later) and do color correction on location or at the editor's suite
• DaVinci Resolve Studio software activation key included
• Shares basic layout with Mini and Advanced Panels
• Interfaces with and controls software
• Three track balls with outer control rings
• Log and Offset color-correction selection buttons
• Custom control knobs with 4096 steps per rotation and push-button reset
• Control knobs are grouped into four sets of three knobs.
• Y lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows changing the black point without changing saturation.
• Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots.
• Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
• Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
• Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features, making it popular for beauty shots.
• Color Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without oversaturating the image.
• Shadow Control: Selectively lighten or darken shadow detail without affecting your image's mid-tones.
• Highlight Control: Enable retrieving blown-out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid-tones for a natural-looking image.
• Increases or decreases overall image saturation. You can turn your color image into a grayscale image with this control.
• Hue Control: Rotate all hues of the image around 360° of the color wheel. The default setting is 50, which retains the original distribution of hues.
• Luminance Mix Control: Control the balance between the YRGB adjustments and Y-only adjustments made using the Y channel lift, gamma, and gain controls.

• System requirements as of DaVinci Resolve 18:
• macOS 11 Big Sur
• 8GB of system memory; 16GB when using Fusion
• Blackmagic Design Desktop Video version 12.0 or later
• Integrated GPU or discrete GPU with at least 2GB of VRAM
• GPU that supports Metal or OpenCL 1.2
• Windows 10 Creators Update
• 16GB of system memory; 32GB when using Fusion
• Blackmagic Design Desktop Video 10.4.1 or later
• Integrated GPU or discrete GPU with at least 2GB of VRAM
• GPU that supports OpenCL 1.2 or CUDA 11
• NVIDIA/AMD/Intel GPU Driver version–as required by your GPU
• CentOS 7.3
• 32GB of system memory
• Blackmagic Design Desktop Video 10.4.1 or later
• Discrete GPU with at least 2GB of VRAM
• GPU that supports OpenCL 1.2 or CUDA 11
• NVIDIA/AMD Driver version–as required by your GPU

In The Box

• 1 x Blackmagic Design DaVinci Resolve Micro Panel with Resolve Studio Software
• 1 x USB 3.0 Type-C to USB Type-A Cable
• 1 x DaVinci Resolve Studio Software Activation Key
• 1 x Limited 1-Year Warranty
