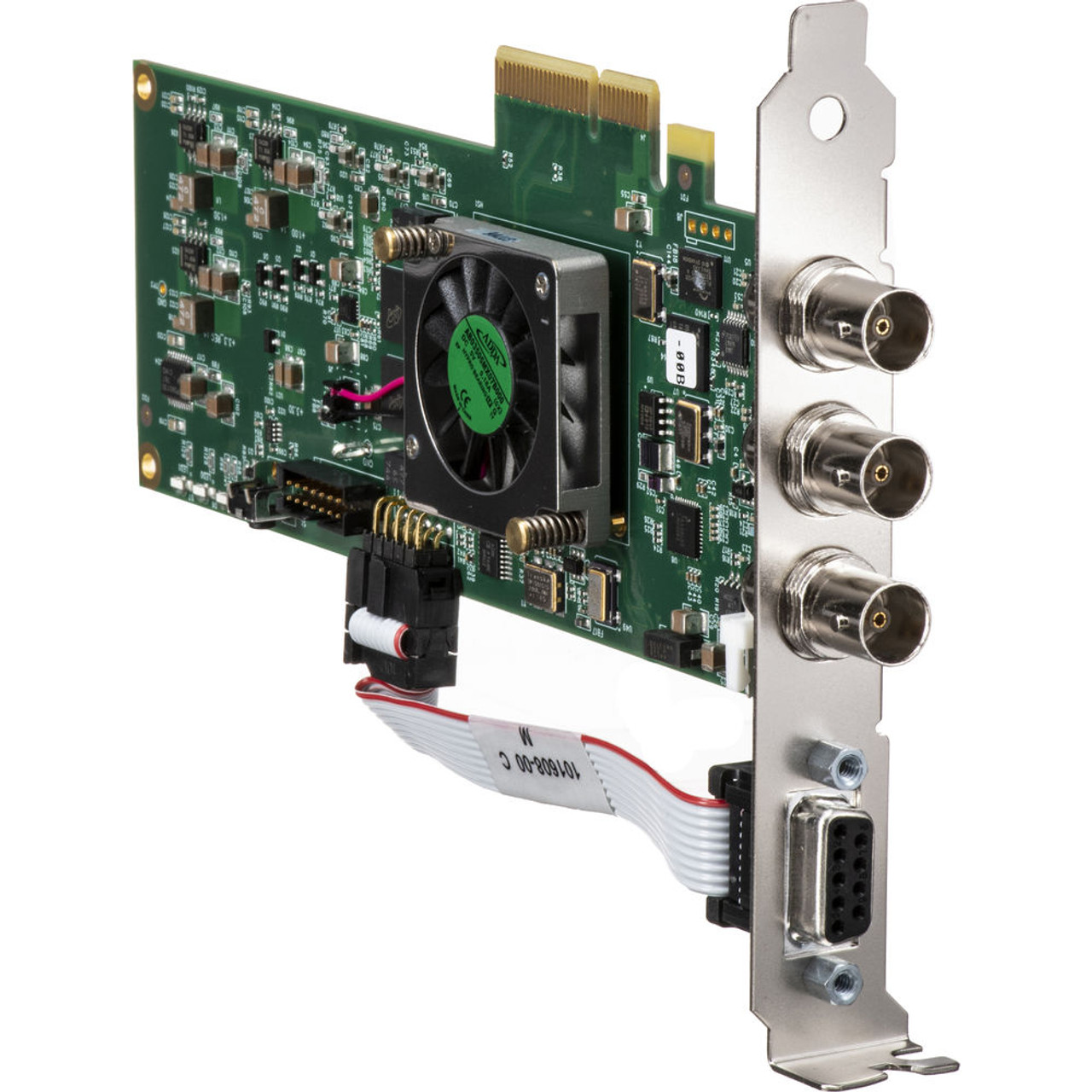

AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card
AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card
SKU:
KONA 1-T-R0
Availability:
Call for Availability
(No reviews yet)
Write a Review
Write a Review
AJA
AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card
$1,850.00
Inc. GST
$1,608.70
Ex. GST
AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card. The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It's Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input.
It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture. Single-channel 3G-SDI 2K/HD 60p capture and playback Tall, consumer version with RS-422 9-pin connector Selectable HD/SD reference/LTC input Simultaneous monitoring during capture Mac/Windows/Linux 2-lane PCIe 2.0 compatible Full-size BNC ports 16-channel SDI embedded audio input/output, 24-bit 48 kHz ANC capture and processing 8-/10-bit YCbCr and RGB frame buffer formats .
- 1-Ch 3G-SDI 2K/HD 60p Capture & Playback
- Tall Version with Integrated RS-422 Port
- Selectable HD/SD Reference/LTC Input
- Simultaneous Monitoring During Capture
- Mac/Win/Linux 2-Lane PCIe 2.0 Compatible
- 16-Ch Embedded Audio I/O, 24-bit/48 kHz
- Full-Size BNC Ports
- ANC Capture and Processing
- 8-/10-Bit YCbCr and RGB
AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card
The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It's Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture.- Single-channel 3G-SDI 2K/HD 60p capture and playback
- Tall, consumer version with RS-422 9-pin connector
- Selectable HD/SD reference/LTC input
- Simultaneous monitoring during capture
- Mac/Windows/Linux 2-lane PCIe 2.0 compatible
- Full-size BNC ports
- 16-channel SDI embedded audio input/output, 24-bit 48 kHz
- ANC capture and processing
- 8-/10-bit YCbCr and RGB frame buffer formats
| Video Formats | 2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2048 x 1080PsF at 23.98, 24, 25 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94 |
| Video Input | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio |
| Output | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio |
| Reference/LTC Input | 1 x 3G-SDI on BNC, analog color black or HD tri-level sync, LTC |
| Serial Control | 1 x RS-422 9-pin D-connector Pinout: 1 - GND 2 - RX- 3 - TX+ 4 - GND 5 - No connection 6 - GND 7 - RX+ 8 - TX- 9 - GND Shell - GND |
| Interface | 2-lane PCIe 2.0 |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Relative Humidity | 10-90% non-condensing |
| Operating Altitude | < 9850' / < 3000 m |
| Dimensions | 0.9 x 7.4 x 4.8" / 2.2 x 18.8 x 12.1 cm |
| Weight | Approx. 0.3 lb / 135 g |
| Package Weight | 0.28Kg |
| Box Dimensions (LxWxH) | 24.89cm x 16.38cm x 8.26cm |
In The Box
- 1 x AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card
- 1 x Limited 3-Year Warranty
AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card
The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It's Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture.- Single-channel 3G-SDI 2K/HD 60p capture and playback
- Tall, consumer version with RS-422 9-pin connector
- Selectable HD/SD reference/LTC input
- Simultaneous monitoring during capture
- Mac/Windows/Linux 2-lane PCIe 2.0 compatible
- Full-size BNC ports
- 16-channel SDI embedded audio input/output, 24-bit 48 kHz
- ANC capture and processing
- 8-/10-bit YCbCr and RGB frame buffer formats
| Video Formats | 2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2048 x 1080PsF at 23.98, 24, 25 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94 |
| Video Input | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio |
| Output | 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio |
| Reference/LTC Input | 1 x 3G-SDI on BNC, analog color black or HD tri-level sync, LTC |
| Serial Control | 1 x RS-422 9-pin D-connector Pinout: 1 - GND 2 - RX- 3 - TX+ 4 - GND 5 - No connection 6 - GND 7 - RX+ 8 - TX- 9 - GND Shell - GND |
| Interface | 2-lane PCIe 2.0 |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Relative Humidity | 10-90% non-condensing |
| Operating Altitude | < 9850' / < 3000 m |
| Dimensions | 0.9 x 7.4 x 4.8" / 2.2 x 18.8 x 12.1 cm |
| Weight | Approx. 0.3 lb / 135 g |
| Package Weight | 0.28Kg |
| Box Dimensions (LxWxH) | 24.89cm x 16.38cm x 8.26cm |
In The Box
- 1 x AJA KONA 1-T Tall 3G-SDI 2K Capture & Playback Card
- 1 x Limited 3-Year Warranty
