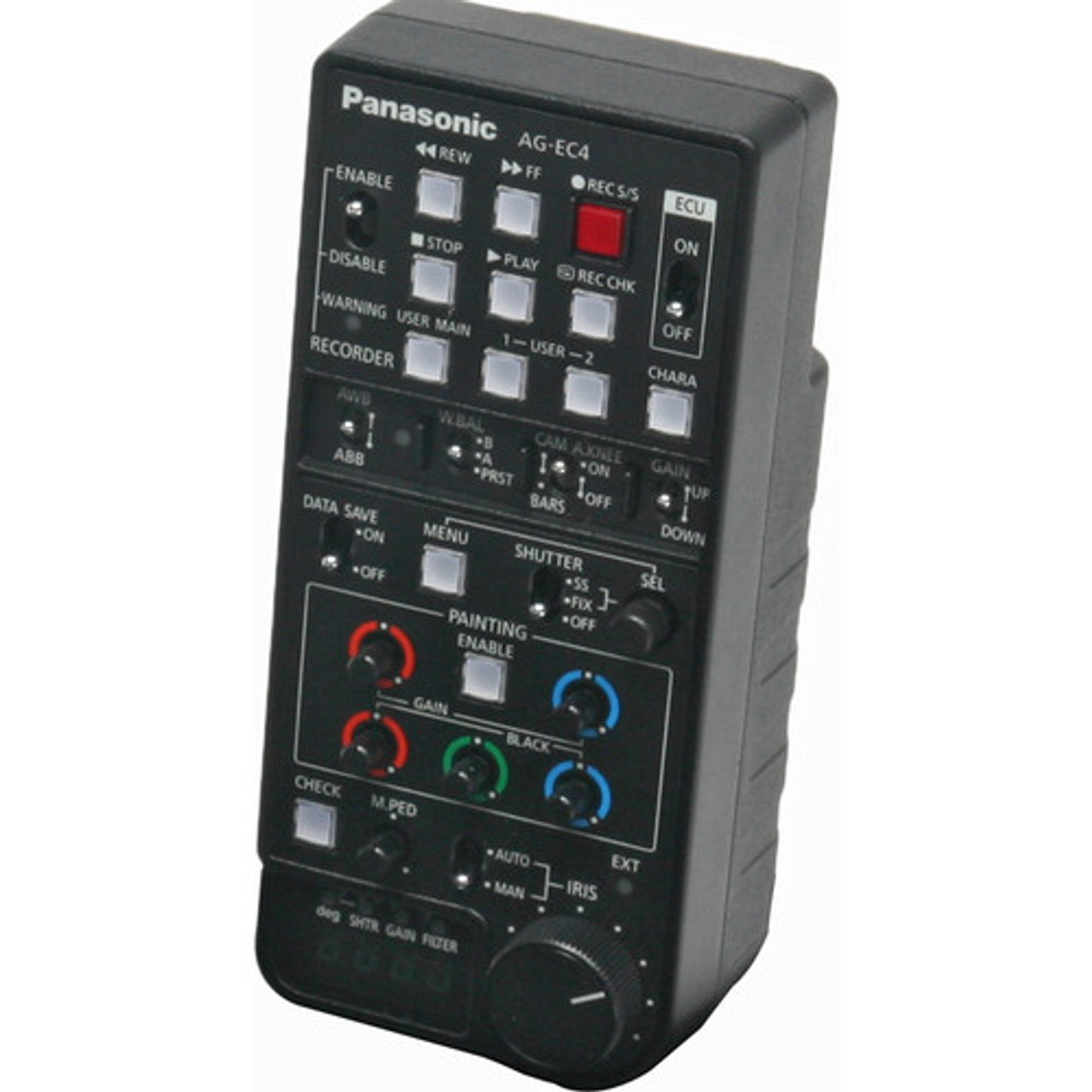

Panasonic AG-EC4GPJ Extension Control Unit
Panasonic AG-EC4GPJ Extension Control Unit
The AG-EC4GPJ Extension Control Unit is designed for use with Panasonic's 300Studio and P2Studio camcorder studio systems. The AG-EC4GPJ offers remote control of each system's base station, up to 50 meters (164 feet) away, or can be attached directly to the camera for control use. The AG-EC4GPJ is compatible with the AJ-HPX3700, AJ-HPX2700, AJ-HPX3000, AJ-HPX200, AND AG-HPX500 P2 camcorders, as well as the DVCPRO AJ-HDX900. It comes standard with a 10-pin, 10 meter (32 foot) remote control cable..
Control Functions Include:. gain up/downoutput camera/bar selection (linked to auto knee)white balance A/B/Preset selectionAWB/ABB executionshutter SS/Fix/Off selection and speed settingiris auto/manual selection and adjustmentmaster pedestalpaintingcamera menu settingsrecorder operation (Rec/Play/FF/Rew/Rec check) Functions and cost-performance are ideally matched to the AG-HPX300 series and AG-HPX500 series camcorders.In addition to providing remote control of the AG-BS300 Base Station, the AG-EC4GPJ can be connected directly to a supported camcorder for control use.The AG-EC4GPJ includes 3 programmable buttons.
- Compatible with Panasonic 300Studio and P2Studio Systems
Panasonic AG-EC4GPJ Extension Control Unit
The AG-EC4GPJ Extension Control Unit is designed for use with Panasonic's 300Studio and P2Studio camcorder studio systems. The AG-EC4GPJ offers remote control of each system's base station, up to 50 meters (164 feet) away, or can be attached directly to the camera for control use.
The AG-EC4GPJ is compatible with the AJ-HPX3700, AJ-HPX2700, AJ-HPX3000, AJ-HPX200, AND AG-HPX500 P2 camcorders, as well as the DVCPRO AJ-HDX900. It comes standard with a 10-pin, 10 meter (32 foot) remote control cable.
Control Functions Include:
- gain up/down
- output camera/bar selection (linked to auto knee)
- white balance A/B/Preset selection
- AWB/ABB execution
- shutter SS/Fix/Off selection and speed setting
- iris auto/manual selection and adjustment
- master pedestal
- painting
- camera menu settings
- recorder operation (Rec/Play/FF/Rew/Rec check)
Inputs/Outputs | Camera/Base Station: 10-pin multi-connector Video Out: BNC x 1 |
Power Supply | 12VDC |
Power Consumption | 25W |
Dimensions (WxHxD) | 3.25 x 7.12 x 2.25" (8.2 x 18 x 5.6 cm) |
Weight | 1.4 lbs (620g) |
Package Weight | 2.09Kg |
Box Dimensions (LxWxH) | 24.64cm x 22.86cm x 16.76cm |
In The Box
- 1 x Panasonic AG-EC4GPJ Extension Control Unit
- 1 x 32' (10m) Remote Control Cable
- 1 x 1 Year Limited Warranty
